precision laser wire stripping system

mercury-4e 精密激光剝線系統

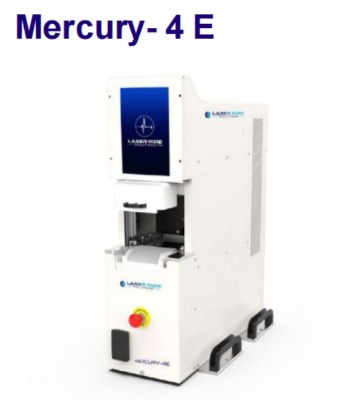

laser wire solutions’ mercury- 4 e laser wire stripper is an extended version of

the highly popular mercury- 4 model, allowing for a greater number of wires to

be processed at any one time. laserwiresolutions的mercury-4e激光剝線器是非常流行的

mercury-4型號的擴展版本,允許在任何時候處理更多的電線。

the mercury- 4 e is an excellent multi- purpose tool for any precision wire

stripping requirements. designed with cost in mind for general purpose stripping

of performance electronics. mercury-4e是一款適用于任何精密剝線要求的優秀多用途工具。設計

時考慮到了成本,適用于高性能電子產品的通用剝離。

unlike conventional laser wire strippers, the mercury- 4 e utilizes high speed

double-sided galvo- scanner technology. this allows high accuracy positioning of

the laser beam at unprecedented speeds. 與傳統的激光剝線器不同,mercury-4e采用了高速

雙面galvo掃描儀技術。這允許以前所未有的速度對激光束進行高精度定位 。

compact 緊湊型

smallest footprint laser wire stripper on the market: 6”x 14” ( 15 2 mmx3 5 5 mm)

and can be easily retrofitted into existing production lines.

激剝線機尺寸152mmx355mm, 容易放入生產線集成。

clean***precise 清潔性&精確性

nick- free stripping, with ±0.1mm repeatability for the best quality every time. inbuilt camera allows the whole process to be monitored. 無缺口剝離,可重復性為

±0.1mm,每次都能獲得最 佳 質量,內置攝像頭可以監控整個過程。

versitile 多樣性

strips single conductor, coax***ribbons; 0.0010mm2 to 16mm2 (50 awg to 6 awg).

all insulations. with dual (x & y) axis motion it handles all strip types: cross-cut,

windows***area ablation;***any shapes.帶狀單導線、同軸電纜和帶狀電纜；0.0010mm2至

16mm2（50 awg至6 awg）,所有絕緣層。通過雙軸（x和y）運動,可以處理所有類型的剝線：橫

切、窗口和區域消融；以及任何形狀線纜。
