品牌：retz/我們一直致力于機械設備和測控領域的持續創新,始于2005……進口鼓形齒式聯軸器在工作時,兩軸產生相對角位移,內外齒的齒面周期性作軸向相對滑動,必然形成齒面磨損和功率消耗,因此,鼓形齒式聯軸器需在有良好和密封的狀態下工作。齒式聯軸器徑向尺寸小,承載能力大,常用于低速重載工況條件的軸系傳動,高精度并經動平衡的齒式聯軸器可用于高速傳動,如燃汽輪機的軸系傳動during operation, the

drum gear coupling generates relative angular displacement between the two

shafts,***the tooth surfaces of the inner***outer teeth periodically slide

axially, inevitably resulting in tooth wear***power consumption. therefore,

the drum gear coupling needs to work in a good***sealed state. toothed

couplings have small radial dimensions***large load-bearing capacity,***are

commonly used for shaft transmission under low speed***heavy load conditions.

high precision***dynamically balanced tooth couplings can be used for high-speed

transmission, such as shaft transmission of gas turbines.

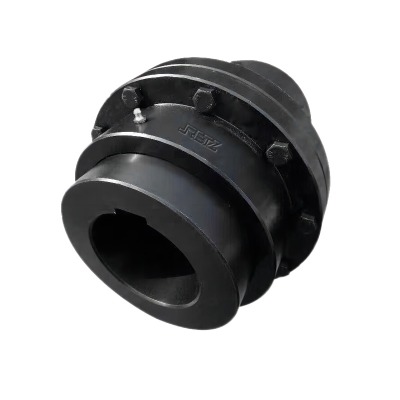

進口鼓形齒式聯軸器 牙嵌式聯軸器產品用途 product use

1.鼓形齒式聯軸器是由齒數相同的內齒圈和帶外齒的凸緣半聯軸器等零件組成。外齒分為直齒和鼓形齒兩種齒形,所謂鼓形齒即為將外齒 制成球面,球面中心在齒輪軸線上,齒側間隙較一般齒輪大,鼓形齒聯軸器可允許較大的角位移（相對于直齒聯軸器）,可改善齒的接觸條件,提高傳遞轉矩的能 力,延長使用壽命。

2.齒式聯軸器在工作時,兩軸產生相對角位移,內外齒的齒面周期性作軸向相對滑動,必然形成齒面磨損和功率消耗,因此,齒式聯軸器需在有良好和密封的狀態下工作。齒式聯軸器徑向尺寸小,承載能力大,常用于低速重載工況條件的軸系傳動,并經動平衡的齒式聯軸器可用于高速傳動,如燃汽輪機的軸系傳動。由于鼓形齒式聯軸器角向補償大于直齒式聯軸器,均廣泛采用鼓形齒式聯軸器,直齒式聯軸器屬于被淘汰的產品,選用者應盡量不選用

進口鼓形齒式聯軸器 牙嵌式聯軸器結構特點 structural features

1、承載。在相同的內齒套外徑和聯軸器外徑下,鼓形齒式聯軸器的承載能力平均比直齒式聯軸器提高15～20％

load bearing. under the same outer diameter of the inner gear sleeve***the

coupling, the bearing capacity of the drum gear coupling is increased by 15-20％

on average compared to the straight gear coupling

2、角位移補償量大。當徑向位移等于零時,直齒式聯軸器的許用角位移為1o,而鼓形齒式聯軸器的許用角位移為1o30',提高50％。在相同的模數、齒數、齒寬下,鼓形齒比直齒允許的角位移大 large amount of angular

displacement compensation. when the radial displacement is equal to zero, the

allowable angular displacement of the straight tooth coupling is 1o, while the

allowable angular displacement of the drum tooth coupling is 1o30 ', increasing

by 50％. under the same modulus, number of teeth,***tooth width, the allowable

angular displacement of drum shaped teeth is greater than that of straight

teeth

3、鼓形齒面使內、外齒的接觸條件,避免了在角位移條件下直齒齒端棱邊擠壓,應力集中的弊端,同時了齒面摩擦、磨損狀況,降低了噪聲,維修周期長 the drum-shaped tooth

surface provides contact conditions for the inner***outer teeth, avoiding the

disadvantages of pressing the edges of straight teeth under angular

displacement conditions***concentrating stress. at the same time, it reduces

friction***wear on the tooth surface, reduces noise,***has a long

maintenance cycle

4、外齒套齒端呈喇叭形狀,使內、外齒裝拆方便 the tooth end of the outer gear

sleeve is in a horn shape, making it easy to assemble***disassemble the inner

and outer teeth

5、傳動達99.7％

the transmission reaches 99.7％.

retz（瑞茨）鼓形齒式聯軸器,牙嵌式聯軸器涵蓋了進口鼓型齒式聯軸器(gicl)、進口鼓型齒式聯軸器(gⅱcl)、進口接中間軸型鼓形齒式聯軸器、進口鼓形齒式聯軸器(gⅱclz)、進口齒式聯軸器(gcld)、進口齒式聯軸器(clz)、進口齒式聯軸器(gcl)、進口帶制動輪鼓形齒式聯軸器(wgz)、進口帶制動盤齒式聯軸器(wgp)、

進口接中間套鼓形齒式聯軸器(wgt)、進口垂直安 裝鼓形齒式聯軸器(wgc)、進口帶制動輪型鼓形齒式聯軸器、進口尼龍內齒聯軸器(nl)、進口尼龍套鼓形齒式聯軸器(tgl)
