品牌：retz/我們一直致力于機械設備和測控領域的持續創新,始于2005……進口星形彈性聯軸器是以工程塑料作彈性元件,適用于連接兩同軸線的傳動軸系,具有補償兩軸相對偏移、緩沖、減震、耐磨性能,適應場合普遍,傳遞轉矩20-35000.n.m,工作溫度-35-+80攝氏度。聚氨脂彈性體由凸形爪塊限制,可避免由于沖擊產生的內部變形及離心力產生的外部變形；凸爪大的凹面,使漸開線齒上的表面壓力很小,齒上即使承受過載,齒仍不會磨損或變形

進口星型聯軸器產品用途

product use

星形彈性聯軸器(45#鋼)：適用于連接兩同軸線、啟動頻繁、正反轉多變的軸系傳動

suitable for connecting two coaxial lines, frequent starting,***variable

forward***reverse rotation shaft transmission

擴大軸孔彈性星形聯軸器(45#鋼)：適合于孔徑更大的安 裝場合,特別適合于重載荷的傳動單元,如升降機、建筑機械 the

shaft sleeve is made of steel, which is suitable for installation with larger

apertures, especially for transmission units with heavy loads, such as

elevators***construction machinery

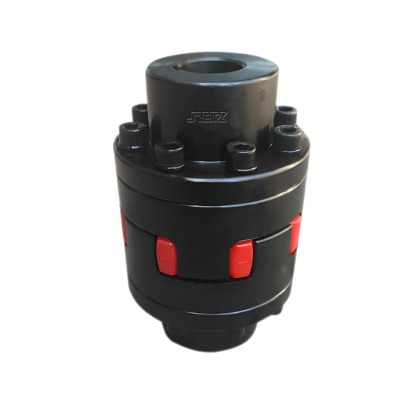

法蘭彈性星形聯軸器(45#鋼)：適用于重型機械的法蘭聯結,a型和b型適用于法蘭和軸的聯結 suitable for

flange connection of heavy machinery, type a***type b are suitable for flange

and shaft connection

單、雙法蘭星形彈性聯軸器：是預應力下無齒隙的連接,應用于主軸傳動、升降平臺和機床等 star

elastic couplings are characterized by a pre-stressed connection without

backlash,***are used in spindle drives, lifting platforms,***machine tools

雙彈性體星形聯軸器：預應力下無齒隙的連接,應用于主軸傳動、升降平臺和機床等 star

elastic couplings are characterized by a pre-stressed connection without

backlash,***are used in spindle drives, lifting platforms,***machine tools

工作環境溫度-35~80℃

working environment temperature - 35~80 ℃

以工程塑料作彈性元件,緩沖、減振、耐磨 using

engineering plastics as elastic elements for cushioning, vibration reduction,

and wear resistance

進口星型聯軸器結構特點

structural features

尺寸緊湊,慣性小,承載能力高 compact size,

small inertia, high bearing capacity

具有補償兩軸相對位移、減震、緩沖的功能 it

has the function of compensating the relative displacement of two shafts,

damping,***buffering

尺寸緊湊,慣性小,軸向插入式安 裝

compact size, small inertia, axial plug-in installation

彈性體由凸形爪塊限制,可避免由于沖擊產生的內部變形及離心力產生的外部變形。凸爪大的凹面,使漸開線齒上的表面壓力很小,齒上即使承受過載,齒仍不會磨損或變形 the

elastomer is limited by a convex claw block to avoid internal deformation

caused by impact***external deformation caused by centrifugal force. the

large concave surface of the claw makes the surface pressure on the involute

tooth very small,***even if the tooth is subjected to overload, the tooth

will still not be worn***deformed

兩同軸線、啟動頻繁、正反轉多變的軸系傳動 shaft

transmission with two coaxial lines, frequent starting,***variable forward

and reverse rotation

雙部件雙節式結構能補償很大的安 裝偏差

double component***double section structure can compensate for large

installation deviation

阻尼振動,降低噪音

damping vibration***reducing noise

偏差引起的力很小 the

force caused by the deviation is very small

retz（瑞茨）星型聯軸器系列產品涵蓋了進口星形彈性聯軸器(45#鋼),進口擴大軸孔彈性星形聯軸器(45#鋼),進口法蘭彈性星形聯軸器(45#鋼),進口單、雙法蘭星形彈性聯軸器,進口雙彈性體星形聯軸器
