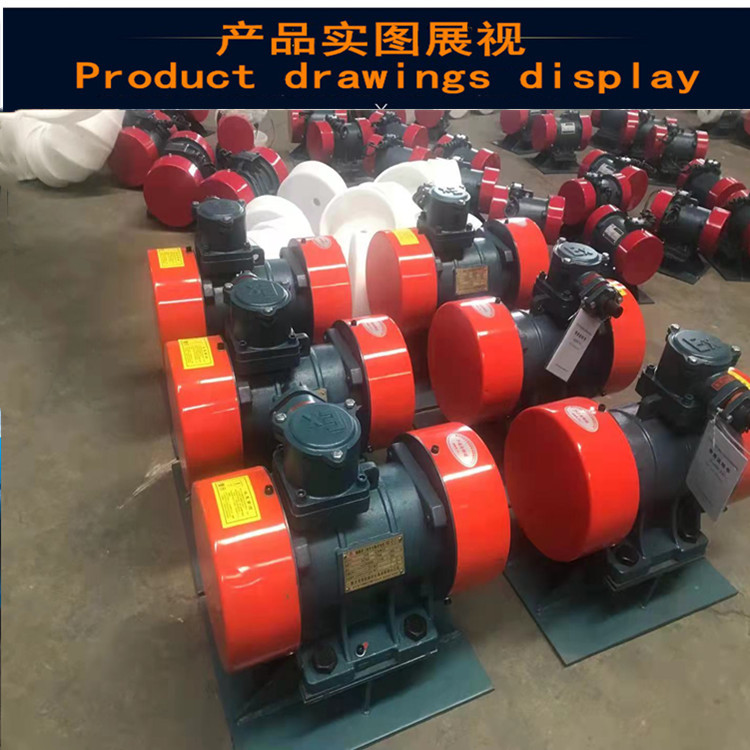

ybzh112-5-2防爆振動電機/宏達史克平提供

ybzh系列防爆振動電機詳細說明　　使用條件：

防護等級：ip55絕緣等級:b、f級額定頻率：50hz電壓：380v、66ov、380v/660v工作制:s1

安 裝方式：臥式海拔高度:<1oo0m環境溫度：一15℃一＋40℃

空氣相對濕度：≤95％（溫度為25℃）

工廠具有引燃溫度組別為tl一t4組的可燃性氣體或蒸氣與空氣形成的爆炸性混合物場所或存在有爆炸性粉 塵的場所。

產品介紹：

ybzh系列戶外隔爆型振動三相異步電動機（簡稱防爆型振動電機）,其工作原理和通用型振動電機類似,是利用兩端的偏心塊高速旋轉產生振動力作為振動源。該系列防爆振動電機具有設計合理、結構緊湊、激振效率高、節能、壽命長、運行可靠,安 裝調試方便等優點,主要用于煤礦、石油天然氣、石油化工和化學工業．此外,在紡織、冶金、城市煤氣、交通、糧油加工、造紙、醫 藥等部門也被廣泛應用。可作為振動料斗、振動篩、圓振篩、振動給料機、振動輸送機的要求防爆環境工作振動源。

技術參數：

型號激振力(kn)轉速(r/min)功率（kw)電流（a)電壓(v)安 裝尺寸(mm)外形尺寸(mm)abkhaabbglh1ybzh112-2.5-22.528200.250.693801801104-φ1411222016018348327ybzh112-5-2528200.441.013801801404-φ1811222019018388327ybzh112-8-2828200.551.653801801404-φ1811222019018388327ybzh112-10-21028200.752.153801801404-φ1811222019018388327ybzh112-2.5-42.514200.130.523801801104-φ1411222016018348327ybzh112-5-4514200.250.993801801104-φ1411222016018348327ybzh112-16-21628501.12.53801801404-φ1812522019020388340ybzh112-8-4814200.451.593801801404-φ1812522019020388340ybzh112-10-41014200.551.733801801404-φ1812522019020388340ybzh112-2.5-639500.20.843801801404-φ1812522019020388340ybzh112-5-659500.41.683801801404-φ1812522019020388340ybzh112-8-689600.551.843801801404-φ1812522019020445340ybzh112-20-22028501.53.33802201604-φ2614027023025460368ybzh112-16-41614200.752.13802201604-φ2614027023025460368ybzh112-20-42014201.12.73802201604-φ2614027023025460368ybzh112-10-6109600.752.53802201604-φ2614027023025460368ybzh112-30-23028502.24.73802201604-φ2917027023025480395ybzh112-30-43014401.53.843802601804-φ2917027026025510395ybzh112-16-6169601.13.373802601804-φ2917032026025530395ybzh112-20-6209601.54.593802601804-φ2917032026025530395ybzh112-30-6309602.26.5/3.7380/6603202004-φ3320040030030560470ybzh112-40-64096038.05/4.6380/6603202004-φ3320040030030560470ybzh112-50-45014402.29.6/5.5380/6603202004-φ3320040030030560470ybzh112-50-6509603.79.6/5.5380/6603702004-φ3922546030032630530ybzh112-75-6759605.514.4/8.2380/6603702604-φ4522546044035820540ybzh112-100-61009607.519/10.9380/6603702604-φ4522546044035820540
