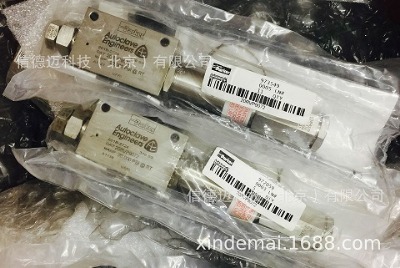

現貨autoclave engineers安 全閥20rvp9072

relief valve, rvp series - 75,000 psi | #20rvp9072

parker autoclave's rvp series relief valves provide reliable venting of gases for***pressures from 3,000 psi (206 bar) to 75,000 psi (5171 bar). the valve’s metal seat design provides shut-off of liquids***gases to commercial standards.

technical specifications

技術參數

maximum operating temperature (c): 204

maximum working pressure (bar): 1379

maximum operating temperature (f): 400

maximum working pressure (psi): 20000

inlet connection size: sf562cx

outlet connection size: 3/4" npt

orifice size: 0.156" inch, 3.96 mm

materials of construction: 316 stainless steel

minimum operating temperature: -252 °c, -423 °f

maximum operating pressure: 20000 psi, 1379 bar

20rvp9072

autoclave engineers medium to high pressure metal seat relief valve - rvp

parker autoclave engineers metal seat relief valve - rvp

manufacturer parker

part number 20rvp9072

20rvp9072

metal-seat relief valve

sku: 20rvp9072 categories: parker autoclave engineers, ae relief valves tags: parker autoclave engineers, relief valves

parker autoclave's rvp series relief valves are designed with a metal seat design for reliable venting of gases at***pressures from 3,000 psi (206 bar) to 75,000 psi (5171 bar). the operating temperature range is -423°f (-252°c) to 400°f (204°c).these precision relief valves are designed for thermal expansion***low volume relief applications at high pressures where flow is not critical. thus, liquid curves for these models are not shown in the catalog

parker autoclave can supply various inlet***outlet connections on special order. a high temperature option is also available for temperatures to 750°f (399°c) for rvp models. to specify high temperature option: add suffix “ht” for 750°f (399°c) high temperature option.

caution:

1. ae relief valves are preset***factory sealed. warranty is voided if seal is broken by customer.

2. maximum system operating pressure should not exceed 90％ of relief valve***pressure.

markets:

? oil***gas

? petrochemical

? chemical

? research

features/benefits:

? standard models of relief valves are constructed of 316 stainless steel with selected components made of anti-galling stainless steel material for optimum economy***ruggedness.

? designed with 3/8”***5/16” parker autoclave high pressure inlet connections. the outlet connection on all models is a female 3/4” npt. while adapters to other sizes***connection types are available, they must be sized for specific flow requirements.

? orifice diameters range from .062 (1.57mm) to .312” (7.92mm).

? designed to open as a function of increasing system pressure. proper spring selection assures repeatability of opening, full lift***flow,***reseat pressures.

? materials engineering***stringent quality control procedures combine to assure the highest quality, reliability***service life. each valve is preset***factory sealed to ensure proper valve operation.

? unique seat construction plus over-the-nozzle guiding***proper selection of materials permits standard***pressures to 75,000 psi. (5171 bar)

? designed to provide bubble tight shut off of gases.

? engineered to perform with fewer basic components, rvs valves facilitate minimum stocking of spare parts***ease of maintenance

? available with ce mark. sog option available upon request.

applications:

? pressure gas systems

? cryogenic systems

? steam handling systems

? medium pressure fluid handling systems

autoclave engineers 20rvp9072-ce 接頭 male to female adapters male-to-female adapters join female connections with other size tubing***pipe. 自從1945年創建以來,parker autoclave engineers專業制造能夠在各種極端溫度、壓力和環境變化條件下安 全可靠地工作的高壓閥門系統。如今parker autoclave engineers是為高壓應用行業提供值得信賴的高壓閥門、接頭和管材。parker autoclave engineers的閥門、接頭和管材一起在超過100000psi（6895bar)的壓力條件下可靠運行的性能而聞名業界,同時也可為額定壓力15000psi（1034bar）的應用提供低壓管路。利用單卡套壓力襯套確保使用方便且無泄漏,提供1/16至1/2英寸的連接尺寸。since 1945 parker autoclave engineers has designed***built premium quality valves, fittings***tubing. parker autoclave engineers 10v***sw series needle valves are designed for operation to 15,000 psi (1,034 bar). along with their many features these valves provide dependable***trouble free service in wide variety of applications. 性能參數：  ? available in/or combinations of low, medium***high-pressure series. ? one piece design available ? connection sizes are 1/8",1/4", 5/16", 3/8", 1/2", 9/16", 3/4",***1". ? fittings manufactured from cold worked 316 stainless steel. ? operating temperatures from -423°f (-252°c ) to 1200°f (649°c). ? available in special materials. benefits parker autoclave engineers valves are used in many applications such as the chemical/petrochemical, research,***oil***gas industries. the autoclave low pressure line utilizes a single ferrule compression sleeve design for fast***easy installation. these valves are complemented by a complete line of fittings, tubing***accessories. autoclave engineers 20mfaj16m9 接頭

male to female adapters

male-to-female adapters join female connections with other size tubing***pipe.

自從1945年創建以來,parker autoclave engineers專業制造能夠在各種極端溫度、壓力和環境變化條件下安 全可靠地工作的高壓閥門系統。如今parker autoclave engineers是為高壓應用行業提供值得信賴的高壓閥門、接頭和管材。parker autoclave engineers的閥門、接頭和管材一起在超過100000psi（6895bar)的壓力條件下可靠運行的性能而聞名業界,同時也可為額定壓力15000psi（1034bar）的應用提供低壓管路。利用單卡套壓力襯套確保使用方便且無泄漏,提供1/16至1/2英寸的連接尺寸。since 1945 parker autoclave engineers has designed***built premium quality valves, fittings***tubing. parker autoclave engineers 10v***sw series needle valves are designed for operation to 15,000 psi (1,034 bar). along with their many features these valves provide dependable***trouble free service in wide variety of applications.

性能參數：

 ?available in/or combinations of low, medium***high-pressure series.

?one piece design available

?connection sizes are 1/8",1/4", 5/16", 3/8", 1/2", 9/16", 3/4",***1".

?fittings manufactured from cold worked 316 stainless steel.

?operating temperatures from -423°f (-252°c ) to 1200°f (649°c).

?available in special materials.

benefits parker autoclave engineers valves are used in many applications such as the chemical/petrochemical, research,***oil***gas industries. the autoclave low pressure line utilizes a single ferrule compression sleeve design for fast***easy installation. these valves are complemented by a complete line of fittings, tubing***accessories.
