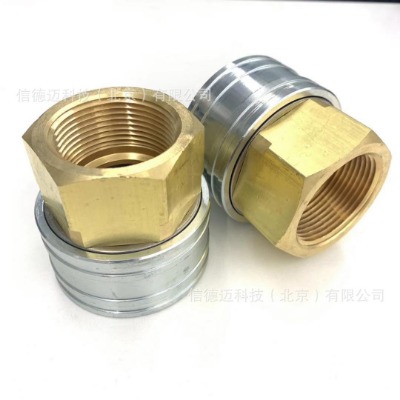

eaton hansen 10s41直通式接頭

eaton hansen 10s41 brass straight through ball lock hydraulic fitting, socket with steel sleeve, 1-1/4"-11-1/2 nptf female, 1-1/4"port size, 1-1/4"body

eaton hansen st系列直通式接頭

eaton hansen st系列是一種無閥門接頭,用于需要最_大_流量及最_少壓降的領域。

eaton hansen st系列直通式接頭 應用：st系列提供的大_流量被用于壓力清洗裝置、蒸汽清洗、液體運輸、模具冷卻線路及化工。

主體尺寸：1/8”、1/4”、3/8”、1/2”、3/4”、1”、1-1/4”、1-1/2”、2”、2-1/2”

材質：鋼、黃銅、不銹鋼、塑料

螺紋連接形式：npt、bsp、坡口連接

工作壓力：

鋼質接頭最_大_可承受：5,500psi(380bar)

黃銅接頭最_大_可承受：5,200psi(360bar)

不銹鋼接頭最_大_可承受：7,500psi(520bar)

塑料接頭最_大_可承受：100psi(8bar)

eaton hansen series st straight-through couplings are designed for use where minimum pressure***is required***valving in the coupling?is not needed. these hansen quick disconnect couplings?are well suited for use on pressure wash, steam cleaning***carpet cleaning equipment,***many fluid transfer systems. body sizes range from 1/8" to 2-1/2".

b10t41

b8t36

b6t30

6s31

10s41

8s36

1st 1/8 193 2,800 234 3,400 290 4,200 772 11,200 10 2.7

2st 1/4 359 5,200 379 5,500 517 7,500 1,436 20,800 21 5.6

3st 3/8 193 2,800 290 4,200 434 6,300 772 11,200 57 15

4st 1/2 152 2,200 241 3,500 248 3,600 608 8,800 83 22

6st 3/4 117 1,700 145 2,100 207 3,000 468 6,800 250 66

8st 1 90 1,300 138 2,000 138 2,000 360 5,200 530 140

10st 1 1/4 117 1,700 186 2,700 152 2,200 468 6,800 697 184

12st 1 1/2 97 1,400 152 2,200 172 2,500 388 5,600 1,124 297

16st 2 97 1,400 152 2,200 103 1,500 388 5,600 1,855 490

20st 2 1/2 62 900 103 1,500

1s10 — ll1s10 socket/female 1/8 1/8 1/8-27 nptf 1 1.06 0.72 0.56 26.9 18.3 14.2

1s10bs — socket/female 1/8 1/8 1/8-28 bspp 1 1.00 0.72 0.56 25.4 18.3 14.2

2s15 — ll2s15 socket/female 1/4 1/4 1/4-18 nptf 1 1.72 0.97 0.81 43.7 24.6 20.6

3s20 — ll3s20 socket/female 3/8 3/8 3/8-18 nptf 1 1.75 1.16 1.00 44.5 29.5 25.4

3s20bs — ll3s20bs socket/female 3/8 3/8 3/8-19 bspp 1 1.71 1.16 1.00 43.4 29.5 25.4

4s25 — ll4s25 socket/female 1/2 1/2 1/2-14 nptf 1 2.03 1.34 1.13 51.6 34.0 28.7

4s25bs — ll4s25bs socket/female 1/2 1/2 1/2-14 bspp 1 1.80 1.34 1.13 45.7 34.0 28.7

6s30 — ll6s30 socket/female 3/4 3/4 3/4-14 nptf 1 2.22 1.72 1.44 56.4 43.7 36.6

6s30bs — — socket/female 3/4 3/4 3/4-14 bspp 1 2.03 1.72 1.44 51.6 43.7 36.6

8s35 — — socket/female 1 1 1-11 1/2 nptf 1 2.53 2.03 1.75 64.3 51.6 44.5

8s35bs — —

b1t10 1t10e ll1t10 plug/male 1/8 1/8 1/8-27 nptf 2 1.06 0.51 0.44 26.9 13.0 11.2

b1t15 1t15 — plug/male 1/8 1/4 1/4-18 nptf 2 1.22 0.65 0.56 31.0 16.5 14.2

b2t15 2t15 ll2t15 plug/male 1/4 1/4 1/4-18 nptf 2 1.56 0.65 0.56 39.6 16.5 14.2

— — hl2t15** plug/male 1/4 1/4 1/4-18 nptf 2 1.56 0.65 0.56 39.6 16.5 14.2

b2t15bs — ll2t15bs plug/male 1/4 1/4 1/4-19 bspp 2 1.46 0.87 0.75 37.1 22.1 19.1

b3t20 3t20 ll3t20 plug/male 3/8 3/8 3/8-18 nptf 2 1.69 0.79 0.69 42.9 20.1 17.5

— — hl3t20** plug/male 3/8 3/8 3/8-18 nptf 2 1.69 0.79 0.69 42.9 20.1 17.5

b3t20bs — ll3t20bs plug/male 3/8 3/8 3/8-19 bspp 2 1.50 1.01 0.88 38.1 25.7 22.4

b4t25 4t25 ll4t25 plug/male 1/2 1/2 1/2-14 nptf 2 2.01 1.01 0.88 51.1 25.7 22.4

b4t25bs — ll4t25bs plug/male 1/2 1/2 1/2-14 bspp 2 1.82 1.15 1.00 46.2 29.2 25.4

b6t30 6t30 ll6t30 plug/male 3/4 3/4 3/4-14 nptf 2 2.2 1.23 1.06 55.9 31.2 26.9

b6t30bs — ll6t30bs plug/male 3/4 3/4 3/4-14 bspp 2 2.08 1.44 1.25 52.8 36.6 31.8

b8t35 8t35 ll8t35 plug/male 1 1 1-11 1/2 nptf 2 2.49 1.59 1.38 63.2 40.4 35.1

b8t35bs — — plug/male 1 1 1-11 bspp 2 2.36 2.02 1.75 59.9 51.3 44.5

b10t40 10t40 ll10t40 plug/male 1 1/4 1 1/4 1 1/4-11 1/2 nptf 2 2.72 2.02 1.75 69.1 51.3 44.5

b10t40bs — — plug/male 1 1/4 1 1/4 1 1/4-11 bspp 2 2.55 2.31 2.00 64.8 58.7 50.8

b12t45 12t45 — plug/male 1 1/2 1 1/2 1 1/2-11 1/2 nptf 2 3.31 2.6 2.25 84.1 66.0 57.2

b12t45bs — — plug/male 1 1/2 1 1/2 1 1/2-11 bspp 2 3.06 2.6 2.25 77.7 66.0 57.2

b16t50 16t50 ll16t50 plug/male 2 2 2-11 1/2 nptf 2 3.5 3.18 2.75 88.9 80.8 69.9

b20t55 —

1s11 — ll1s11 socket/female 1/8 1/8 1/8-27 nptf 1 1.06 0.72 0.56 26.9 18.3 14.2

1s11bs — ll1s11bs socket/female 1/8 1/8 1/8-28 bspp 1 1.03 0.72 0.56 26.2 18.3 14.2

2s16 — ll2s16 socket/female 1/4 1/4 1/4-18 nptf 1 1.5 0.97 0.81 38.1 24.6 20.6

2s16bs — ll2s16bs socket/female 1/4 1/4 1/4-19 bspp 1 1.5 0.97 0.81 38.1 24.6 20.6

3s21 — ll3s21 socket/female 3/8 3/8 3/8-18 nptf 1 1.59 1.16 1.00 40.4 29.5 25.4

3s21bs — ll3s21bs socket/female 3/8 3/8 3/8-19 bspp 1 1.59 1.16 1.00 40.4 29.5 25.4

4s26 — ll4s26 socket/female 1/2 1/2 1/2-14 nptf 1 1.91 1.34 1.13 48.5 34.0 28.7

4s26bs — ll4s26bs socket/female 1/2 1/2 1/2-14 bspp 1 1.91 1.34 1.13 48.5 34.0 28.7

6s31 — ll6s31 socket/female 3/4 3/4 3/4-14 nptf 1 2.06 1.72 1.44 52.3 43.7 36.6

6s31bs — ll6s31bs socket/female 3/4 3/4 3/4-14 bspp 1 2.06 1.72 1.44 52.3 43.7 36.6

8s36 — ll8s36 socket/female 1 1 1-11 1/2 nptf 1 2.33 2.03 1.75 59.2 51.6 44.5

8s36bs — ll8s36bs socket/female 1 1 1-11 bspp 1 2.33 2.03 1.75 59.2 51.6 44.5

10s41* — ll10s41 socket/female 1 1/4 1 1/4 1 1/4-11 1/2 nptf 1 2.44 2.5 2.00 62.0 63.5 50.8

10s41bs* — — socket/female 1 1/4 1 1/4 1 1/4-11 bspp 1 2.51 2.5 2.00 63.8 63.5 50.8

12s46* — ll12s46 socket/female 1 1/2 1 1/2 1 1/2-11 1/2 nptf 1 2.88 3.13 2.60 73.2 79.5 66.0

12s46bs* ll12s46bs socket/female 1 1/2 1 1/2 1 1/2-11 bspp 1 2.88 3.13 2.63 73.2 79.5 66.8

16s51* — ll16s51 socket/female 2 2 2-11 1/2 nptf 1 3.09 3.75 3.00 78.5 95.3 76.2

16s51bs* — ll16s51bs socket/female 2 2 2-11 bspp 1 3.3 3.75 3.00 83.8 95.3 76.2

20s56* — — socket

b1t11 1t11 ll1t11 plug/male 1/8 1/8 1/8-27 nptf 2 0.97 0.58 0.50 24.6 14.7 12.7

b1t11bs — ll1t11bs plug/male 1/8 1/8 1/8-28 bspp 2 0.97 0.65 0.56 24.6 16.5 14.2

b2t16 2t16 ll2t16 plug/male 1/4 1/4 1/4-18 nptf 2 1.45 0.79 0.69 36.8 20.1 17.5

— — hl2t16** plug/male 1/4 1/4 1/4-18 nptf 2 1.45 0.79 0.69 36.8 20.1 17.5

b2t16bs — ll2t16bs plug/male 1/4 1/4 1/4-19 bspp 2 1.45 0.87 0.75 36.8 22.1 19.1

b3t21 3t21 ll3t21 plug/male 3/8 3/8 3/8-18 nptf 2 1.63 0.94 0.81 41.4 23.9 20.6

— — hl3t21** plug/male 3/8 3/8 3/8-18 nptf 2 1.63 0.94 0.81 41.4 23.9 20.6

b3t21bs — ll3t21bs plug/male 3/8 3/8 3/8-19 bspp 2 1.63 1.01 0.88 41.4 25.7 22.4

b4t26 4t26 ll4t26 plug/male 1/2 1/2 1/2-14 nptf 2 1.92 1.15 1.00 48.8 29.2 25.4

b4t26bs — ll4t26bs plug/male 1/2 1/2 1/2-14 bspp 2 1.92 1.23 1.06 48.8 31.2 26.9

b6t31 6t31 ll6t31 plug/male 3/4 3/4 3/4-14 nptf 2 2.01 1.37 1.19 51.1 34.8 30.2

b6t31bs — ll6t31bs plug/male 3/4 3/4 3/4-14 bspp 2 2.01 1.51 1.31 51.1 38.4 33.3

b8t36 8t36 ll8t36 plug/male 1 1 1-11 1/2 nptf 2 2.21 1.8 1.56 56.1 45.7 39.6

b8t36bs — ll8t36bs plug/male 1 1 1-11 bspp 2 2.23 1.8 1.56 56.6 45.7 39.6

b10t41 10t41 ll10t41 plug/male 1 1/4 1 1/4 1 1/4-11 1/2 nptf 2 2.34 2.31 2.00 59.4 58.7 50.8

b10t41bs — ll10t41bs plug/male 1 1/4 1 1/4 1 1/4-11 bspp 2 2.53 2.31 2.00 64.3 58.7 50.8

b12t46 12t46 ll12t46 plug/male 1 1/2 1 1/2 1 1/2-11 1/2 nptf 2 2.88 2.6 2.25 73.2 66.0 57.2

b12t46bs — ll12t46bs plug/male 1 1/2 1 1/2 1 1/2-11 bspp 2 2.88 2.6 2.25 73.2 66.0 57.2

b16t51 16t51 — plug/male 2 2 2-11 1/2 nptf 2 3.03 3.18 2.75 77.0 80.8 69.9

b16t51bs — — plug/male 2 2 2-11 bspp 2 3.25 3.18 2.75 82.6 80.8 69.9

b20t56 20t56 — plug/male

1s12 ll1s12 — socket/female 1/8 3/16 1 1.41 0.72 35.8 18.3

1s17 ll1s17 — socket/female 1/8 1/4 1 1.41 0.72 35.8 18.3

2s17 ll2s17 — socket/female 1/4 1/4 1 2.10 0.97 53.3 24.6

3s22 ll3s22 — socket/female 3/8 3/8 1 2.09 1.16 53.1 29.5

4s27 ll4s27 — socket/female 1/2 1/2 1 2.19 1.34 55.6 34.0

6s32 ll6s32 — socket/female 3/4 3/4 1 3.19 1.72 81.0 43.7

8s37 ll8s37 — socket/female 1 1 1 3.32 2.03 84.3 51.6

part number coupling body hose dimensions

brass stainless steel type size i.d. fig. c d c d

(in) (in) (mm) (mm)

b1t12 ll1t12 — plug/male

b1t17 ll1t17 — plug/male

b2t17 ll2t17 — plug/male

b3t22 ll3t22 — plug/male

b4t27 ll4t27 — plug/male

b6t32 ll6t32 — plug/male

b8t37 —

dust caps***dust plugs

series dust cap dust plug

2st — psdc1hk

3st — psdc2hk

6st ppdc4hk psdc4hk

8st ppdc6hk —

10st ppdc8hk —
