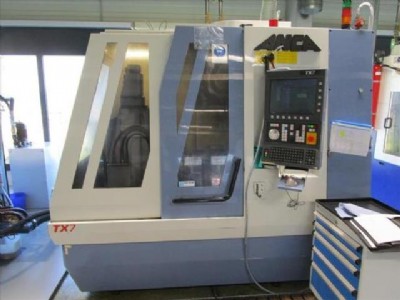

universal tool【敏感詞】cutter grinder (cnc controlled)安  卡萬能工具磨削中心made by anca, model型號 tx7,  serial-n° 編號600078, year 出廠時間2002

deｓｃｒｉｐｔion描述:

suitable to regrind / manufacture wood【敏感詞】metal working tools of all kinds.適合修磨及生產各種金屬及木工加工工具

specifications規格:

x-axis longitudinal stroke 行程550 mm, z-axis vertical traverse行程 254 mm, y-axis cross traverse 行程410 mm, c-axis rotation回轉 +/- 252°, workpiece mount工件座錐度 iso 50; max. workpiece diameter工件最大直徑 200 mm, max. workpiece length工件最大長度 300 mm, grinding spindle power rating 主軸功率 18 kw, grinding spindle speed主軸轉速 1800 - 8000 rpm, max. grinding wheel diameter 最大砂輪直徑200 mm x 50,8 mm, connected load 裝載功率25 kva (400 volts / 50 hz), weight 重量9500 kg, dimensions體積 w x d x h = 2060 x 2520 x 2250 mm, colour顏色 light grey ral 7035 / light blue 5014.

accessories:附件

software 軟件rn23.1-3,

pallet loader for workpieces盤式上料機 2-32 mm,

automatic steady rest,自動尾架

automatic fire extinguishing system,自動滅火系統

probe,探針

pneumatic workpiece clamping,液壓工件夾持

stepless grinding spindle speed,步進速度控制

automatic central lubrication,自動中央潤滑

machine lamp,機床燈2

grinding wheel mounts,砂輪桿

6 pallets for loader Ø 8,10,12,14,16,20 mm上料盤

oil collecting pan.集油盤
