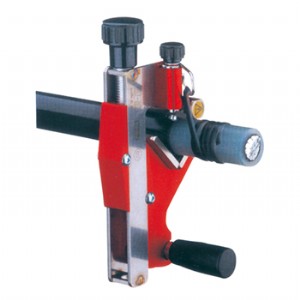

hls外半導體層電纜剝皮器av6400

尺寸:250×160×55mm

重量:600g

應用范圍16 – 41 mm

剝除厚度0 – 2 mm

建議適用非硫化剝離半導電層

外半導體層剝離工具

技術特點：

適用于中高壓xlpe 交聯聚乙烯電纜，可剝除外半電層；

可縱切、螺旋形切及環切, 縱向切剝如同剝香蕉形式；

定位夾可固定電纜，確定剝離的長度；

逐步調節深度，最大可旋轉直徑130 mm；

刀片可調整深度最大2 mm，

調整旋鈕刻度為0-0.9 mm，

每個刻度進刀為0.1 mm；

縱切口開始位置可以精確對準。

可以在有限的空間減少旋轉；

完美的環形切割；

表面以下無切口.

注意：不適合帶電作業

標準配置：

·hls 電纜剝皮：av6410

·固定夾：av6411

·矽膠潤滑劑  ：ag1013

·工具箱：ab6400

hls semiconductor layer cable stripping device

av6400

size: 250 x 160 x 55mm

weight: 600g

the application range of 16 - 41 mm

peeling thickness of 0 - 2 mm

suggestions for non sulfide stripping semi

conductive layer

the outer semiconductor layer stripping tool

technical characteristics:

suitable for medium【敏感詞】high voltage xlpe xlpe

cable, strippable except semi layer;

can the slitting, spiral cutting【敏感詞】ring

cutting, longitudinal cutting【敏感詞】stripping like banana peel form;

the positioning clip can be fixed cable,

determine the stripping length;

gradually regulate the depth, the maximum

rotating diameter of 130 mm;

the blade can be adjusted maximum depth 2 mm,

adjustment knob calibration for 0-0.9 mm,

each scale feed is 0.1 mm;

longitudinal cutting start position can be

precisely aligned.

can reduce the rotation in the limited space;

the perfect ring cutting;

below the surface without incision.

note: not suitable for live working

standard configuration:

hls cable stripping: av6410

- fixed folder: av6411

and silicone lubricant: ag1013

ben: ab6400 toolbox
