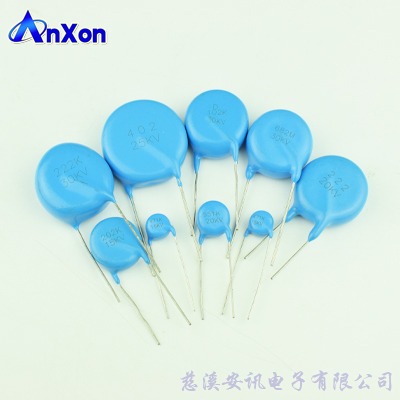

安 訊ct81徑向引線型圓片式超高壓陶瓷電容器

高壓陶瓷電容器,就是以陶瓷材料為介質的電容器。高壓瓷片電容器的主要特點---耐壓高,電壓有3kv,6kv, 8kv, 10kv, 12kv, 15kv, 20kv, 25kv, 30kv, 35kv, 40kv, 50kv,用于各種交流直流高壓電路場合

常見的一類電容陶瓷材質有：npo、c0g, uj, sl, n4700等,該類陶瓷電容溫度系數的變化是確定的,容量和溫度存在一個線性關系。頻率特性和電壓特性也非常好,但因介電常數不高,所以容量做不大。

常見的二類電容陶瓷材質有：y5r,y5p,y5t,y5s,y5u,y5v等,二類陶瓷材質其溫度是非線性的,容量可以很大,但頻率和溫度卻不恒定。

安 訊高壓陶瓷電容具有優良的充放電性能,耐壓高,頻率特性好,能承受高沖擊電壓,超低局放等特點,有交流和直流應用供客戶選擇。

額定電壓: 1kv,2kv , 3kv,

6kv, 7kv, 8kv, 10kv, 12kv, 15kv, 20kv, 24kv, 25kv, 30kv, 35kv, 36kv, 40kv, 50kv

容量: 10pf,15pf, 20pf, 22pf, 27pf, 33pf, 39pf,

47pf, 56pf, 68pf, 82pf, 100pf, 220pf, 270pf, 330pf, 390pf, 470pf, 500pf, 560pf,

680pf, 820pf, 1000pf, 1500pf, 2200pf, 2700pf, 3300pf, 3900pf, 4700pf, 5600pf, 6800pf,

8200pf, 10000pf

工作頻率范圍: 50hz-5mhz

主要陶瓷介質: k100, k300, k2500, k3500, k5000,

npo, c0g, sl, n4700, y5r, y5s, y5t, y5p,

           y5u, y5v, z5u, z5v

產品主要應用

1.無損檢測x_ray/ct機械、x光機高壓電源等。

2.負離子發生器,空氣凈化器,高壓包。

3.倍壓電路,點火器

4.各種測定設備的高電壓電源電路或其他直流高電壓電源電路。

5.電源儲能、分壓倍壓及保護電路中。

常用規格:

6kv: 100pf, 470pf, 1000pf, 2200pf, 3300pf, 4700pf,

10000pf

8kv: 18pf, 100pf, 500pf, 680pf, 1000pf, 10000pf

250vac 8kvdc: 220pf, 470pf, 1000pf, 2200pf, 4700pf

10kv: 10pf, 22pf, 33pf, 50pf, 100pf, 135pf, 220pf. 330pf,

500pf, 680pf, 1000pf, 2200pf, 3300pf, 4700pf, 5000pf, 10000pf

15kv: 30pf, 50pf, 100pf, 150pf, 220pf, 330pf, 470pf,

500pf, 680pf, 1000pf, 1500pf, 1900pf, 2200pf, 3000pf, 3300pf, 4700pf, 10000pf

20kv: 20pf, 100pf, 110pf, 150pf, 220pf, 330pf, 470pf,

500pf, 680pf, 1000pf, 1500pf, 2200pf, 3000pf, 5000pf, 6000pf, 10000pf

25kv: 500pf, 1000pf, 10000pf

30kv: 100pf, 150pf, 220pf, 330pf, 470pf, 500pf, 680pf,

1000pf, 1500pf, 2200pf, 3300pf, 4700pf, 5000pf, 10000pf

35kv: 500pf, 1000pf, 1500pf, 2700pf, 3000pf, 4500pf,

6000pf

40kv: 30pf, 100pf, 470pf, 4700pf, 6000pf

50kv: 30pf, 470pf, 500pf, 560pf, 750pf, 1000pf, 10000pf

可以替代 avx, tdk, hvca, cke, vishay, morgan ceramics***etc...
